  Current Fieldwork : Suspended Sediment

  Booner Tubes

Page soon to be updated with latest progress

Since June 2002, booner tubes have been under design and testing. The current design, simply created from a plastic drainage pipe can be seen as follows:

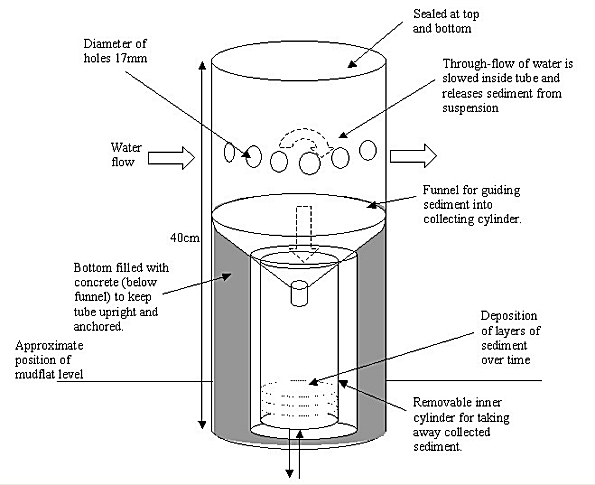

Booner Tube Diagram

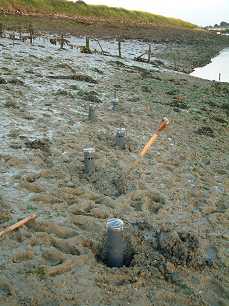

At the time of writing, two test runs have so far been conducted in the field to decide which arrangement and sizes of holes collects the greatest amount of suspended sediment. 5 different variations were created.

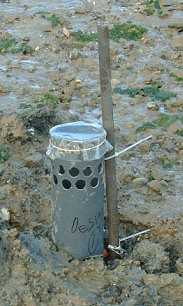

Booner Tube design Booner Tubes

Once a design has been decided on, the tube's ability to collect sediment will be calibrated using known flow velocities/directions and known quantities of sediment in a flume tank. Final amendments will then be made to the internal design before being deployed at some of the locations where accretion/erosion (via plates and poles) is being monitored.
